Why Use Surge Suppressors
In high volume fluid handling systems, shocks are experienced when the valves open or close, or when the pumps are started or stopped. The pressure spikes generated are four times greater than the system allowable pressure, causing the burst of the pipe, loosening fittings and damaging the meters and instruments.
Our surge suppressors are designed as low-pressure accumulator products to control these shocks. Application include water sprinkling systems, water handling systems, refinery, refueling systems, chemical processing systems.
Surge Suppressor Benefits
- Controls surges and water hammer
- Protects the meters and fittings, helps save the cost of repair or damage
- Saves pump energy by holding consistent pressure
- Keeps the system running smoothly and efficiently
RAL- SERIES
—2.5-15G, up to 700PSI (carbon steel); 2000PSI (stainless steel)
SPECIFICATIONS:
SHELL
Carbon Steel, ASME Coded per Section VIII, Div. 1, U Stamped.
Stainless Steel 316 ASME Coded per Section VIII, Div. 1, U Stamped.
Screens
Stainless Steel, 300 Series
Bladders
Standard Nitrile; Various Rubber Compounds Available.
(see Reasontek bladder repair kits)
Flanges
Carbon Steel, Stainless Steel, ANSI Standard, Threaded
Fluids
Compatible with a Wide Variety of Fluids with Temperature Range from -60F to 440F (-53C to 230C)
Maximum Flow Rate
350GPM or 1325LPM for 3” Flange
Pressure Rating
Carbon steel Up to 700PSI; Stainless steel up to 2000PSI
OTHER AVAILABLE OPTIONS:
• Standard Sizes from 2.5-gallon to 15-gallon, custom sizes are made by request.
• Bladder Compounds (see Reasontek Bladder Repair Kits page for different available rubber materials)
• Flanges- 150#, 300#, 3”/4” (carbon steel); 150#, 300#, 600#, 3”/4” (stainless steel)
• Nickel plate or epoxy coating for water and chemical services

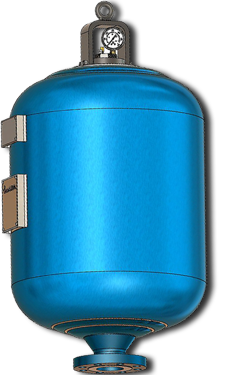

RPK- SERIES, PulsekushonTM
—40-150G, up to 500PSI, carbon steel, stainless steel
SPECIFICATIONS:
SHELL
Carbon Steel, SS304, SS316, ASME Coded per Section VIII, Div. 1, U Stamped.
Screens
Stainless Steel, 300 Series
Bladders
Standard Nitrile; Various Rubber Compounds Available.
(see Reasontek bladder repair kits)
Flanges
Carbon Steel, SS304, SS316, ANSI Standard Welded
Fluids
Compatible with a Wide Variety of Fluids with Temperature Range from -60F to 440F (-53C to 230C)
Maximum Flow Rate
350GPM or 1325LPM for 3” Flange
Pressure Rating
Up to 500PSI.
OTHER AVAILABLE OPTIONS:
- Standard Sizes from 40-gallon to 150-gallon, custom sizes are made by request.
- Bladder Compounds (see Reasontek Bladder Repair Kits page for different available rubber materials)
- Standard ANSI RFWN flanges 3”-150#, 3”-300#, 4”-150#, 4”-300#; special sizes are made by request.
- Internal & external epoxy coating for water and chemical services
- Mounting legs and brackets options by request
