The RGA-100 series Accumulator Charging and Gauging Assembly from Reasontek are standard tools for maintaining the Nitrogen pre-charge in hydro-pneumatic accumulators. Gauges are available in different pressure ranges up to 3000 PSI. Other pressures and metric gauge markings are also available.
Features:
- Easy to install and operate
- No external leakage
- Maximum versatility
- All hardware included, replacement parts list
- High quality US made pressure gauges, fittings, hoses.
- 10′ Parker charging hose with standard right-hand thread nitrogen fitting
- Cables ties for easy compact storage

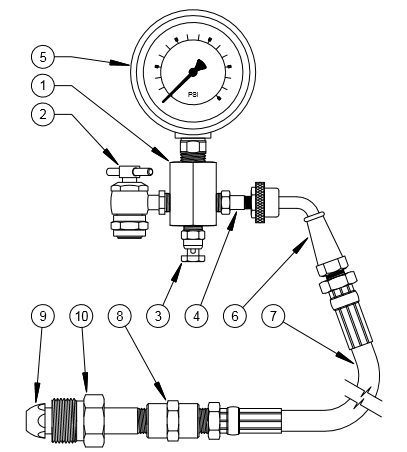

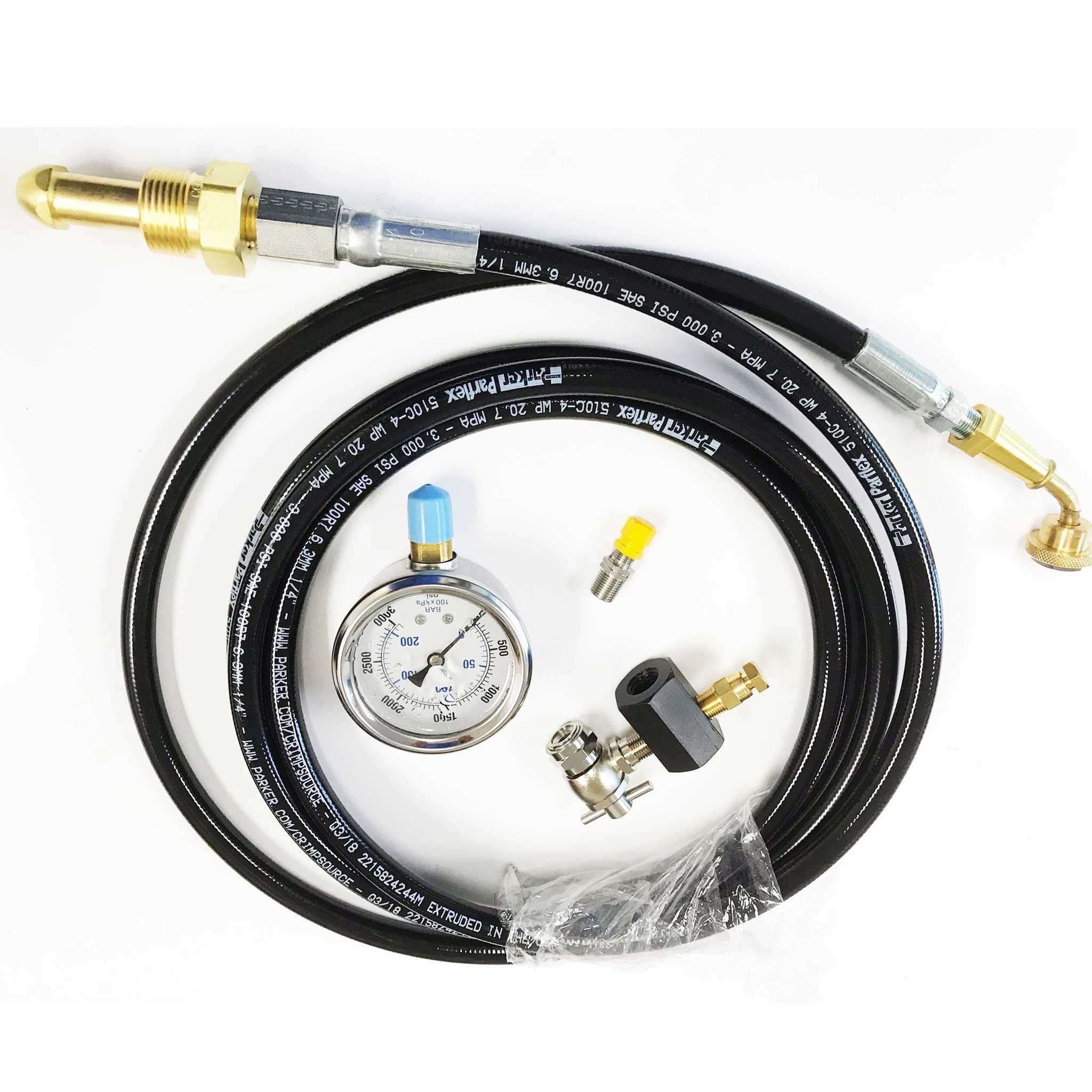

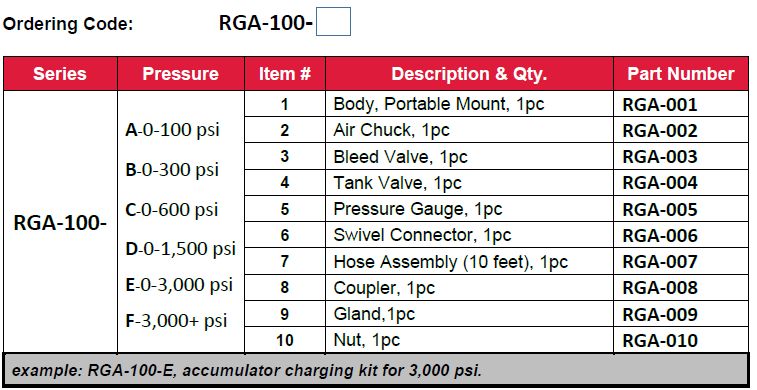

RGA-100 Charging Kit Assy.

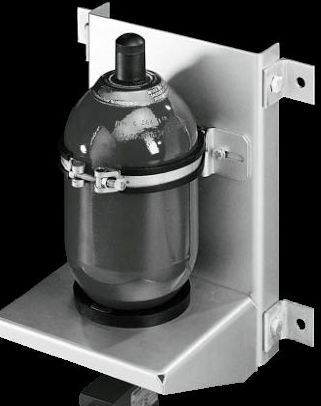

Clamps and Brackets
Our accumulator mounting clamps and brackets are designed to provide simple and secure mounting for accumulators, cylinders and filter housings.
Special features:
- Rubber cushioning to reduce vibration and noise.
- Compensation for thermal expansion and contraction.
- Exclusively designed for all types of accumulators, cylinders and filter housings.
- Clear Zinc plated to resist corrosion.
- Special sizes, designs and materials (including stainless steel) available upon request.

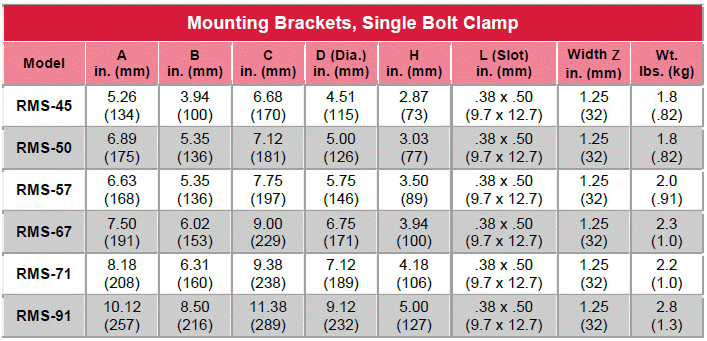

Single Bolt Clamp

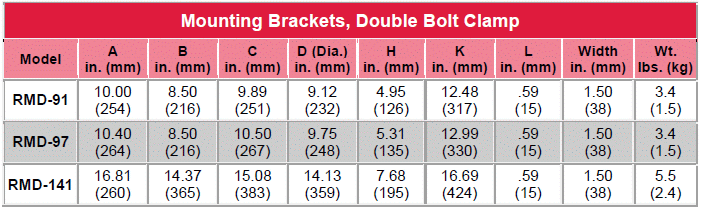

Double Bolt Clamp

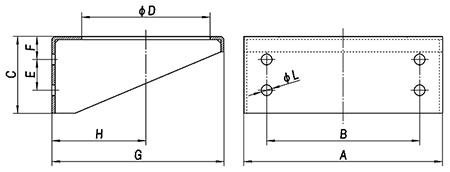

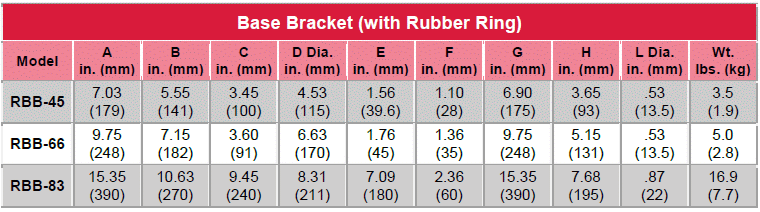

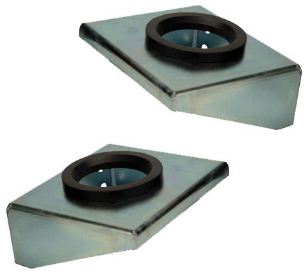

Base Bracket (with Rubber Ring)

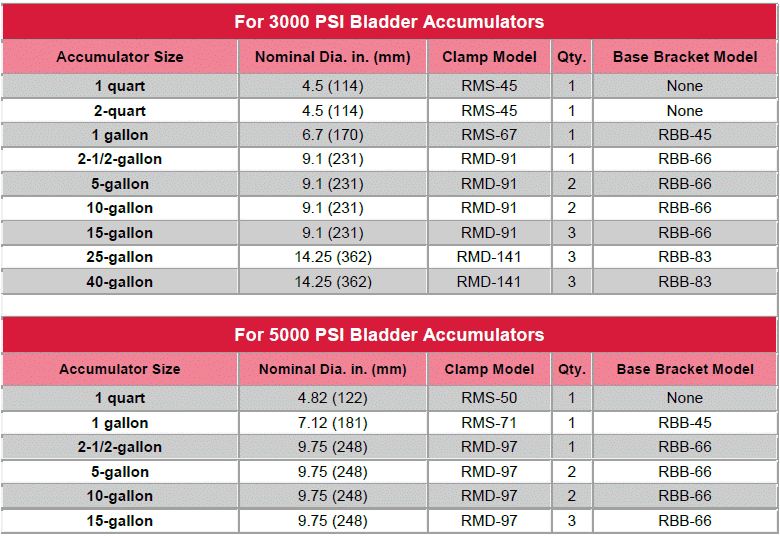

Mounting Brackets Compatibility
